Selecting the right rope for marine operations requires more than simply checking its diameter or material. Technical specifications often include terms such as Breaking Load, Safe Working Load (SWL), and Working Load Limit (WLL). Although these three values are closely related to rope strength and load capacity, they describe different aspects of rope performance.
Confusing these terms can lead to incorrect product selection, particularly when a rope is used for mooring, towing, anchoring, lifting, or other applications where significant loads are involved.
In this article, let SIAM BROTHERS VIETNAM explain the differences between Breaking Load, Safe Working Load and Working Load Limit, how these values should be interpreted, and what marine rope buyers should consider before selecting a product.
Breaking Load refers to the force at which a rope reaches failure during a specified test. Depending on the product specification and applicable standard, related terms such as Breaking Strength or Minimum Breaking Load (MBL) may also be used.
For example, if a marine rope has a stated Breaking Load of 10 tonnes, this does not mean the rope should routinely carry a 10-tonne working load.
The Breaking Load represents the rope's resistance to failure under defined test conditions. Actual operating conditions can be considerably more demanding.
Marine ropes may experience repeated bending, abrasion, sudden loading, dynamic forces, UV exposure, saltwater, and changes in tension. These factors can influence the rope's performance over its service life.
Therefore, Breaking Load should primarily be viewed as a strength-to-failure parameter, rather than a recommended operating load.
One of the most common mistakes when purchasing marine rope is treating the Breaking Load as the maximum permissible working load.
In real marine operations, loads are rarely perfectly static. Vessel movement, waves, wind, current, shock loading, and sudden changes in tension can create forces that are considerably different from those generated during a controlled laboratory test.
Rope configuration also matters. Knots, bends, connectors, sheaves, abrasion points, and small bending radii can influence the actual performance of a rope.
For this reason, a rope with a high Breaking Load is not automatically suitable for an application with an equally high operating load.
For more article Aquaman Rope: Shaping the Future of the Maritime Industry
Safe Working Load (SWL) generally describes the maximum load that a product or system is considered safe to handle under specified operating conditions.
Unlike Breaking Load, SWL incorporates a safety margin between the load used during operation and the point at which failure could occur.
A simplified example can help illustrate the concept.
If a rope has a Breaking Load of 10 tonnes and a safety factor of 5:1 is applicable, a theoretical working load could be:
SWL = 10 ÷ 5 = 2 tonnes
However, this calculation should only be regarded as an illustration of the relationship between breaking strength and working load. A buyer should not independently assign a safety factor and calculate an operating load for a marine application without reference to the relevant technical requirements.
The appropriate safety factor depends on the rope construction, application, loading conditions, applicable standards, and manufacturer recommendations.
Not necessarily.
A rope used for static mooring may experience a different loading pattern from a rope used for towing. Similarly, a rope exposed to repeated shock loading, sharp bends, or continuous movement may require different considerations from one operating under relatively stable tension.
This means an SWL value should always be interpreted together with the conditions under which that value applies.
For marine rope selection, buyers should therefore look beyond a single number and review the complete technical specification.
For more article Marine Rope: A Complete Guide to Choosing the Right Type for Fishing Boats, Anchoring Systems & Fish Cage Buoys
.jpg)

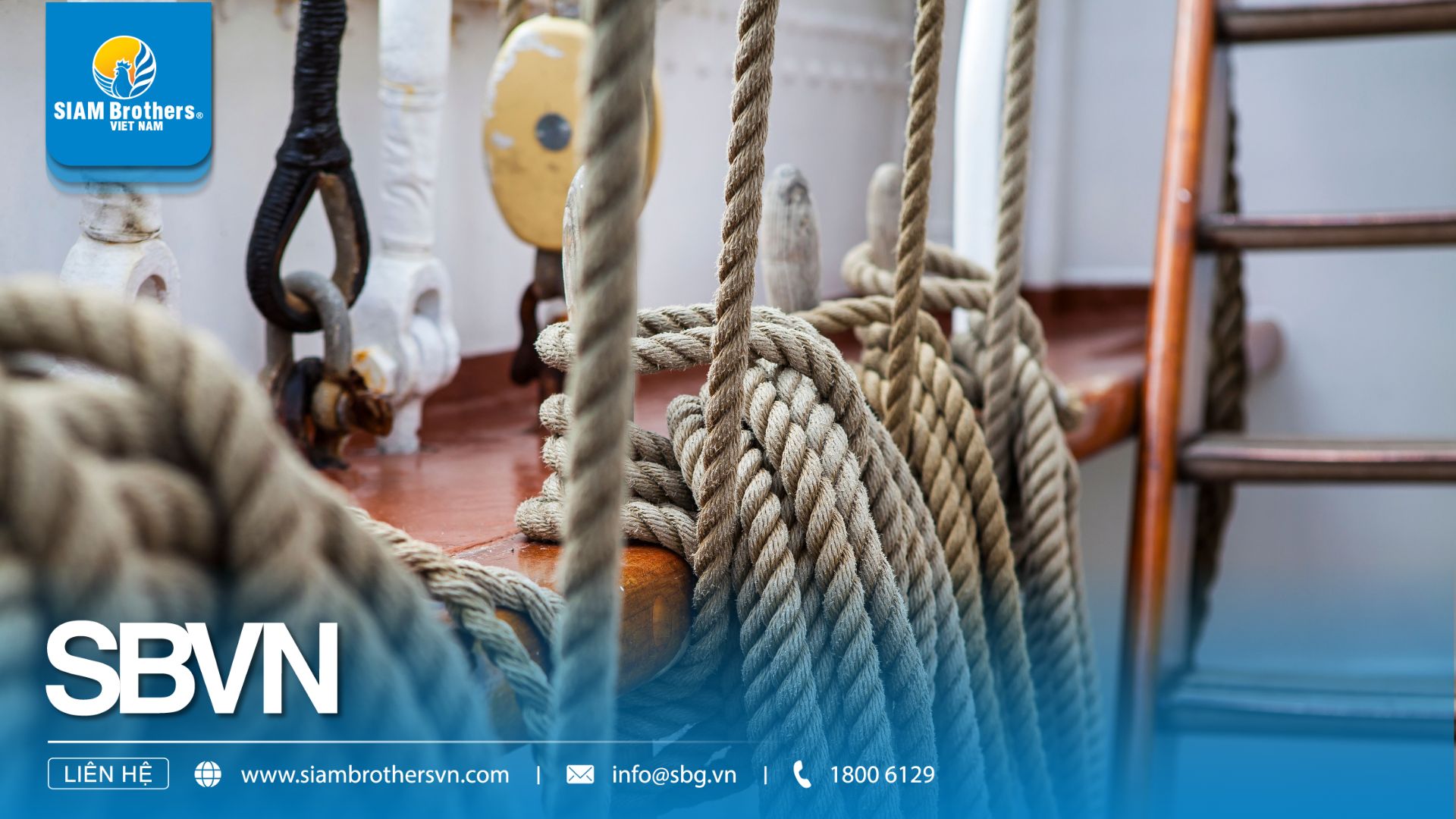

Working Load Limit specification for a marine rope and load-bearing application
Working Load Limit (WLL) refers to the maximum load assigned to a product or system for safe operation under defined conditions.
The term is widely used in lifting equipment, slings, shackles, lifting accessories, and other load-bearing products. It may also appear in technical documentation associated with marine ropes and related equipment.
The key distinction is straightforward:
Breaking Load = force associated with failure
WLL = specified maximum working load
WLL is therefore an operating parameter rather than a measure of the force required to break the rope.
The terms SWL and WLL are sometimes used interchangeably in commercial and technical discussions. However, they should not automatically be assumed to have identical definitions in every standard or application.
WLL is commonly presented as a manufacturer- or standard-defined limit for a particular product under specified conditions. SWL may be used more broadly to describe a safe operating load derived from the product's strength, safety factor, and application requirements.
The exact interpretation depends on the applicable standard and technical documentation.
For this reason, when purchasing marine ropes, it is better to follow the terminology and definitions provided in the manufacturer's documentation and relevant standards rather than assuming that every SWL and WLL value is directly interchangeable.
| Parameter | Meaning | Used as an operating limit? | Main purpose |
|---|---|---|---|
| Breaking Load | Force associated with rope failure during testing | No | Indicates failure strength |
| SWL | Safe load assigned for working conditions | Yes | Defines a safe operating load |
| WLL | Maximum permitted working load under specified conditions | Yes | Establishes an operating limit |
The most important point is that Breaking Load is normally higher than the applicable SWL or WLL. This difference provides the safety margin required between normal operation and potential failure.
When comparing two marine ropes, looking only at Breaking Load can therefore be misleading. A proper comparison should also consider rope construction, material, diameter, safety factor, application, operating environment, and the manufacturer's declared working limits.
.jpg)

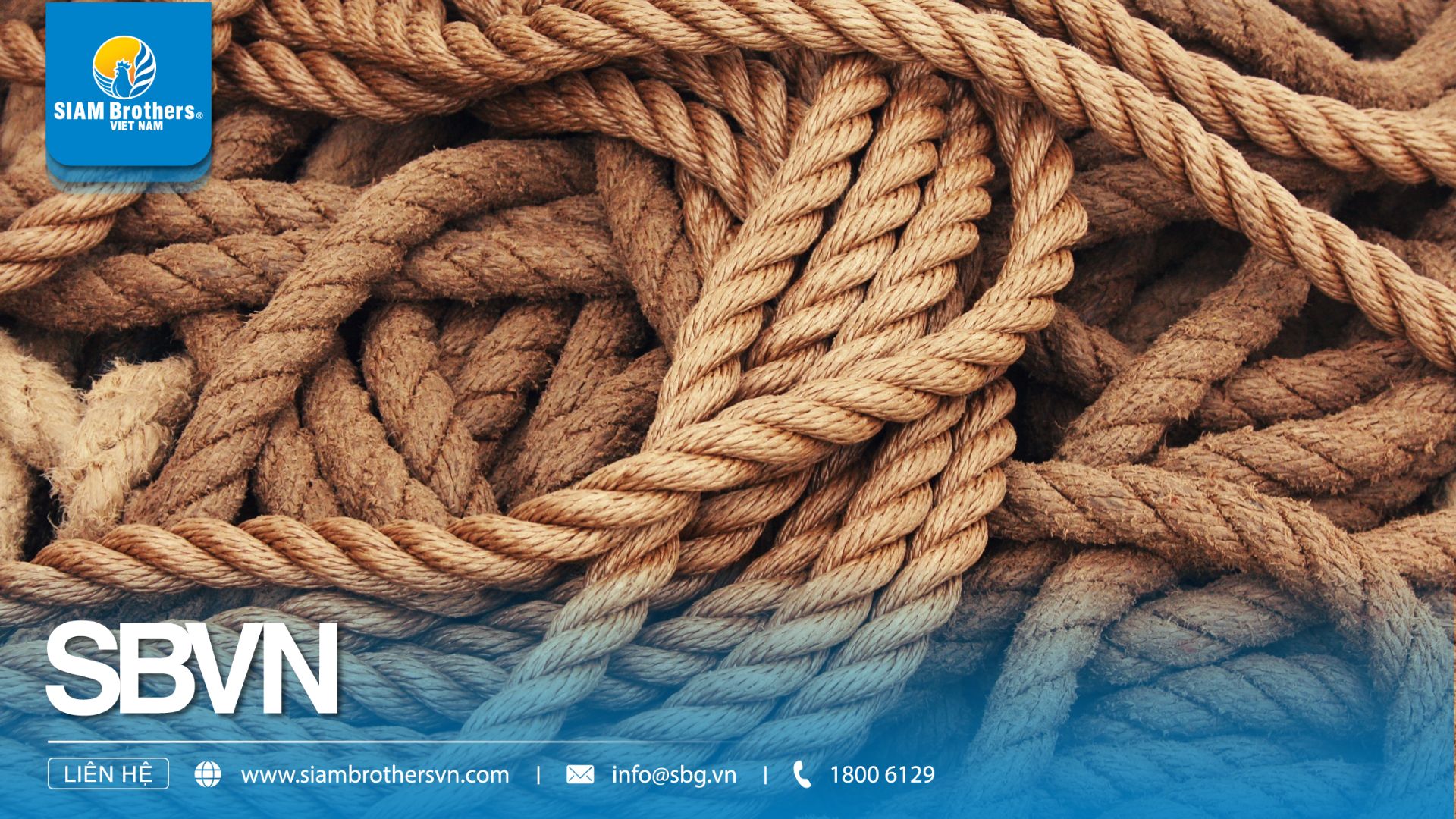

Marine rope operating under dynamic loading during vessel towing and mooring
A higher Breaking Load can make one rope appear stronger or more suitable than another. However, Breaking Load alone does not tell the entire story.
Two ropes may have similar breaking strength while having different constructions, elongation characteristics, abrasion resistance, or intended applications.
For example, a rope designed for towing may have different performance characteristics from one intended primarily for mooring or general marine handling.
The correct question is therefore not simply:
"Which rope has the highest Breaking Load?"
Instead, buyers should ask:
"Which rope provides the appropriate working capacity for my specific application?"
Marine environments create loading conditions that can change continuously.
Wave action, vessel movement, wind, current, and sudden tension changes can generate dynamic or shock loads. This is particularly relevant to marine towing ropes, mooring ropes, and other ropes connected to moving vessels.
A rope that appears adequate when evaluated only against static load may not necessarily be appropriate when dynamic loading is present.
Technical values should not be considered in isolation.
The same rope can perform differently depending on how it is installed, connected, bent, loaded, and maintained.
Consequently, Breaking Load, SWL, and WLL should be understood as part of a complete technical specification, rather than as three independent numbers.
.jpg)
Marine rope selection based on rope construction, load capacity and system components
Rope diameter is an important specification, but it should not be the sole basis for selecting a marine rope.
Depending on the application, buyers should review:
Rope material.
Rope construction.
Number of strands.
Rope diameter.
Breaking Load or MBL.
SWL or WLL, where provided.
Applicable safety factor.
Abrasion resistance.
Resistance to saltwater and outdoor exposure.
Elongation characteristics.
Dynamic loading requirements.
Connection and termination method.
Applicable technical standards.
For critical marine applications, these parameters should be evaluated together with the operating environment and system requirements.
A marine rope rarely works independently.
A mooring, towing, or lifting arrangement may also include shackles, hooks, fairleads, bollards, winches, sheaves, connectors, and other components.
A rope with a high Breaking Load does not make the entire system equally strong if another component has a lower load capacity.
Therefore, marine rope selection should consider the complete load path, not simply the strength of the rope itself.
First determine how the rope will be used.
Is it intended for vessel mooring, towing, anchoring, lifting, fishing, offshore operations, or another marine application?
Different applications can create very different loading conditions.
Estimate both the expected static load and potential dynamic or shock loads.
For vessels operating in waves or strong currents, dynamic loading may become a significant factor in rope selection.
Breaking Load or MBL provides information about the rope's failure strength.
Next, review the manufacturer's declared SWL or WLL, where applicable. Do not simply derive a working load by dividing Breaking Load by an arbitrary safety factor.
Saltwater, UV radiation, abrasion, temperature, chemicals, bending cycles, and frequency of use can all affect rope performance and service life.
A rope intended for continuous marine exposure should therefore be evaluated according to its environmental resistance as well as its strength.
For high-load or safety-critical applications, buyers should provide the manufacturer or technical supplier with information about the intended load, application, vessel conditions, rope configuration, and environmental exposure.
This allows the appropriate rope construction and specification to be evaluated rather than selecting a product based on Breaking Load alone.
No. Breaking Load refers to the force associated with rope failure under specified test conditions. It should not be treated as the routine operating load.
Not necessarily. Both terms relate to permissible working loads, but their exact definitions and applications may vary depending on the relevant standard, product and technical documentation.
Not necessarily. Breaking Load is an important strength indicator, but rope selection should also consider construction, material, elongation, abrasion resistance, environmental exposure, working load and intended application.
A safety factor can be part of the relationship between breaking strength and working load. However, buyers should not independently select a safety factor for a marine application without considering the applicable standards, rope construction, loading conditions and manufacturer's recommendations.
Provide information about the intended application, expected load, vessel or equipment, operating environment, rope diameter, connection method and relevant standards. You should also request the applicable Breaking Load/MBL and working load information for the selected rope.
Breaking Load, Safe Working Load and Working Load Limit describe different aspects of marine rope performance.
Breaking Load relates to the force associated with rope failure, while SWL and WLL are concerned with the load that may be applied during normal operation under defined conditions.
Understanding these differences helps marine rope buyers avoid one of the most common selection errors: choosing a rope solely because it has a high Breaking Load.
For marine ropes, mooring ropes, towing ropes and other rope solutions, the correct selection should consider the complete application, including expected loads, dynamic forces, environmental conditions, rope construction and applicable technical requirements.
